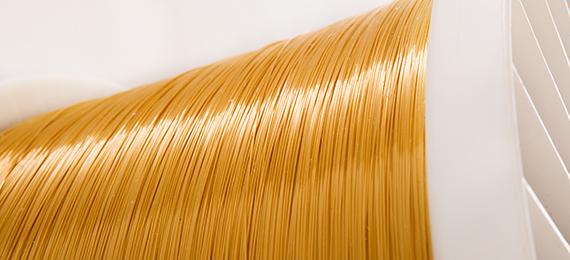

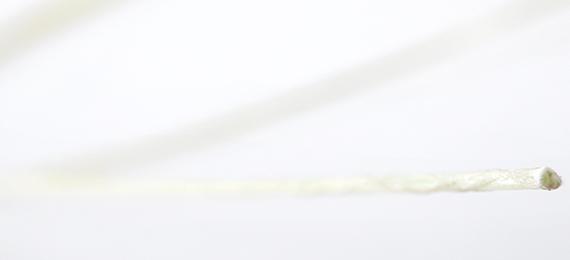

Fiber Reinforced Polymer (FRP): Composite Fiber Rods
Fiber Reinforced Polymer (FRP) is also known as GRP or CSM. Traditional GRP is composed of high strength E-glass fibers impregnated with a variety of specialized proprietary resins.
Key Features of FIBER-LINE® Fiber Reinforced Polymer:
- Sizes Available: 0.50 mm – 5.00mm
- Dielectric (excluding carbon)
- Additional up-jacketing available up to 17.00 mm
- Oval & rectangular shapes available
- Rod printing available for accurate length reading
- Splicing & respooling services available
FIBER-LINE® resin chemistry is optimized for process conditions, fiber adhesion, and end-use application of the FRP. Resin impregnated fibers are chemically cured with thermal or ultraviolet energy to form a highly crosslinked thermoset matrix.
Fibers for FRP:
Performance Adding Coatings:
- FIBER-LINE® Colorcoat™ Color Identification for easy tracking
- Swellcoat™: Block Water Penetration (0.90 mm and larger only)
Packaging

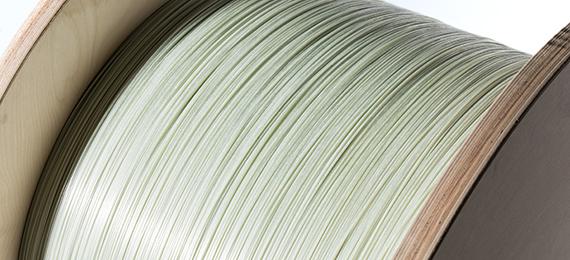

FRP products are supplied on a variety of different size wood or plastics reels along with different lengths depending on the customer’s requirements. Alternate package solutions are also available at the customer's request.
Fiber Reinforced Polymer (FRP) is also known as GRP or CSM. Traditional GRP is composed of high strength E-glass fibers impregnated with a variety of specialized proprietary resins.
Popular Products
| Product ID | Fiber-Line Coating | Base fiber | Tensile Strength | Load at 1% Elongation | Absorption Capacity |
|---|---|---|---|---|---|
| 2.3mm FRP | Swellcoat™ | Fiberglass | >5115 N | >2100 N | 2.5 - 4.5 g/m |
| 0.50mm FRP | Swellcoat™ | Fiberglass | >300 N | >130 N | <1.0 g/m |

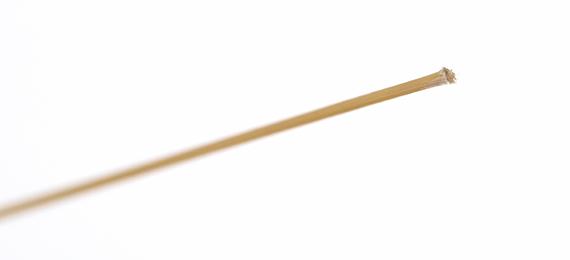

| 0.60mm ARP | - | Kevlar® | >340 N | >165 N | - |
| 5.0mm FRP | - | Fiberglass | >24041 | >9617 | - |
| 0.40mm ARP | - | Kevlar® | >210 N | >95 N | - |
This data is provided for informational purposes only, and does not constitute a specification. FIBER-LINE makes no warranty, express or implied, that the product conforms to these values. Contact your FIBER-LINE representative for exact product details which conform to your specific requirements.
